Engineering Multi-Jointed Swimbaits: Mesh Connections, S-Action Tuning, and Material Science

Introduction

Whether targeting cautious largemouth bass, aggressive pike, or river perch, predatory gamefish are exceptionally sensitive to artificial swimming motions. Multi-jointed swimbaits solve this by breaking rigid silhouettes into segmented, undulating bodies that mimic live baitfish kinetics.

However, from an OEM manufacturing standpoint, segmented lures introduce unique engineering challenges:

• Poorly calibrated joint gaps produce stiff or unnatural swimming actions.
• Substandard mesh or pin connections tear under aggressive strikes.
• Improper ballast placement causes the segmented body to roll or blow out at moderate retrieve speeds.

At Showyee Lure, we combine high-tensile mesh fabric integration, CNC pin hinges, and specialized polymer formulations to craft high-durability multi-jointed OEM swimbaits that track true across all retrieval speeds.

Joint Architectures: Stainless Steel Pins vs. Vulcanized Fiber Mesh

Depending on lure size, target species, and body material, our engineering team selects from two primary connection systems:

1. Double-Pin Stainless Steel Hinges (For Large Hard Glide Baits)

• Design: Interlocking tongue-and-groove pockets anchored by 304/316 stainless steel through-pins.
• Performance: Ideal for 5-inch to 10-inch hard ABS glide baits targeting trophy muskie and big bass. Provides extreme tensile strength (tested to 50kg+ pull force) while constraining joint deflection between 35° and 45° for wide S-glides.

2. High-Tensile Vulcanized Fiber Mesh (For Multi-Segment & Soft-Body Baits)

• Design: High-density woven fabric webbing molded directly into the segment cores.
• Performance: Used for micro-to-medium multi-segmented lures. Delivers ultra-fluid, multi-axis snake-like undulations without mechanical hinge bind.

Case Study: The "Silk Snake" Segmented Platform

To demonstrate how flexible mesh jointing and material formulation create high-performance lures, consider our proven Silk Snake-Shark platform:

Model Spec	Length	Weight	Target Application
#1 Finesse Size	2.5 inches (63.5 mm)	4.5 g	Finesse BFS, pressured clear-water bass, and stream trout
#2 Search Size	3.0 inches (76.2 mm)	8.0 g	Long-distance casting, open-water search for bass, perch & pike

Key Engineering Features of the Platform:

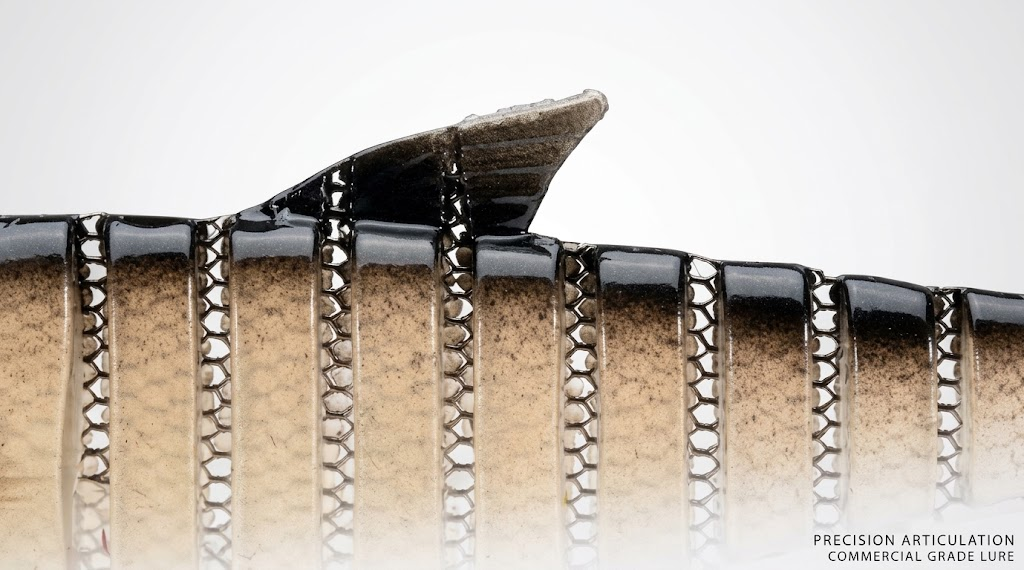

• Precision Mesh Jointing: The multi-segment flexible body utilizes internal mesh webbing to generate tight, fluid S-swimming waves on slow crawls and aggressive twitch retrieves.
• Versatile Rigging (Dual Treble Hooks & Finesse Single Hooks): Can be configured with front-and-belly dual treble hooks for maximum hookup ratios, or inline single/barbless hooks for snag-free fishing in heavy cover and compliance with strict catch-and-release trout fishery rules.
• Shrimp Scent Infusion: Biological shrimp attractants are compounded directly into the PVC matrix, triggering longer strike retention.
• Environment-Specific Color Systems: Calibrated in 6 distinct colorways—ranging from high-contrast Red/Gold for murky water to natural Blue/Silver gradients for ultra-clear reservoirs.

Segmented Lure Manufacturing Standards Comparison

Engineering Feature	Standard OEM Supplier	Showyee Lure Facility
Joint Connection	Thin fabric webbing prone to tearing	Reinforced vulcanized mesh & 316 stainless steel pins
Action Consistency	Loose segment tolerances causing roll-over	Hydrodynamically balanced segmented keels for stable S-curves
Scent Integration	Topical oil spray only (washes away quickly)	Core-compounded long-lasting shrimp/baitfish attractant
Hook Versatility	Fixed, non-customizable hook configurations	Dual treble hooks or inline single hooks calibrated to balance
