Introduction

In competitive fishing and tournament angling, two critical performance metrics separate an average hard bait from an elite one: long-distance castability and swimming stability.

Anglers demand lures that cut straight through heavy coastal headwinds without tumbling in mid-air. The moment the lure enters the strike zone, they expect instant response—a tight wobble, crisp rolling flash, or a true horizontal suspend on the pause.

Achieving this consistency requires rigorous internal engineering. At Showyee Lure, we treat internal chamber architecture and ballast dynamics as precision sciences.

3 Core Weight Systems We Engineer for OEM Hard Baits

Depending on target depth, body profile, and retrieval techniques, our engineering team implements three primary ballast architectures:

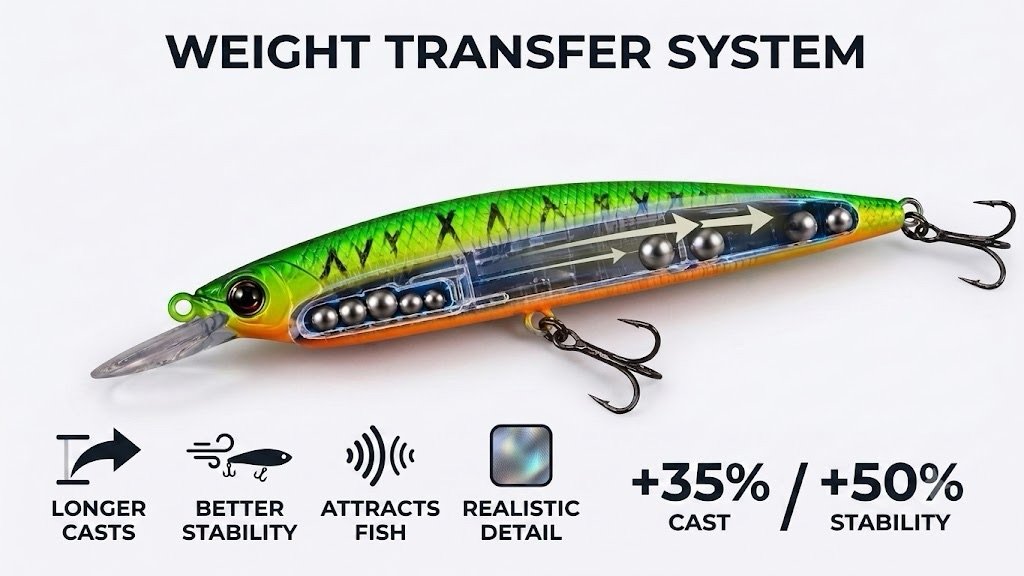

1. Linear Gravity-Transfer Rail Systems (Long-Cast Chambers)
   During the Cast: High-density steel or tungsten ballast spheres slide along a low-friction internal rail directly into the lure's tail. This shifts the Center of Gravity (CoG) to the rear, creating a bullet-like aerodynamic trajectory that maximizes long casting distance.
   On Retrieval: On the first crank, the balls roll forward into the primary keel chamber, instantly resetting the bait into a natural horizontal swimming posture.
2. Magnetic Lock Weight Transfer
   For ultra-responsive jerkbaits: Internal ball bearings are held firmly against a forward neodymium magnet during twitches and pauses, ensuring the bait does not roll or shift unpredictably during aggressive rod jerks.
3. Low-CoG Fixed Keel Ballast
   For deep-diving crankbaits and high-vibration lipless baits: Fixed belly ballast positioned low along the keel provides rapid self-righting recovery, preventing blowouts during high-speed retrieves or in turbulent currents.

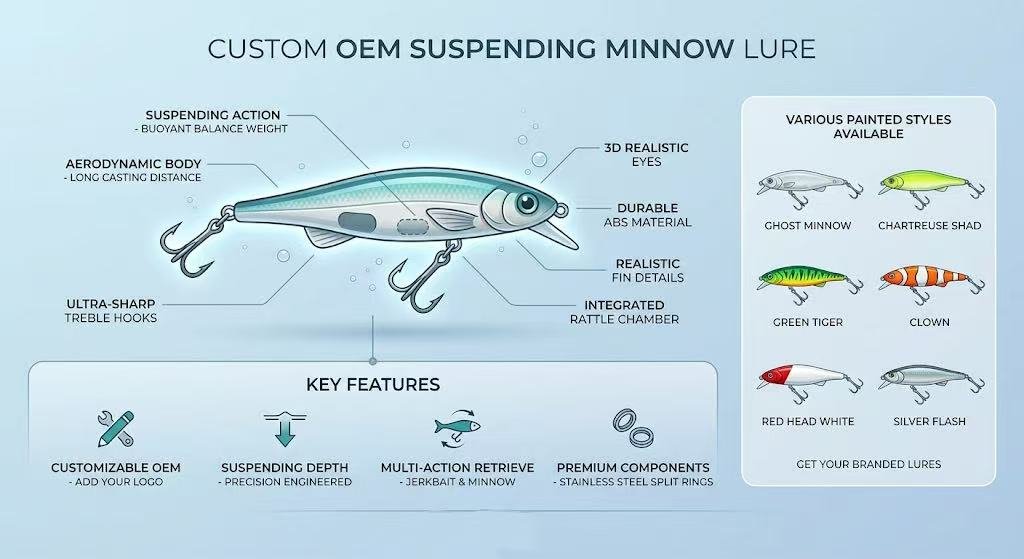

Case in Point: Engineering a 135mm Suspending Minnow

To see how internal hydrodynamics translate to real-world performance, consider one of our flagship OEM platforms: the 135mm / 18.5g True Suspending Minnow.

By optimizing internal chamber tolerances and weight distribution, this platform achieves:

• Aerodynamic Efficiency (+35% Casting Distance): Multi-ball shifting channels drive kinetic energy to the tail during the load-up of the rod, preventing tail-whip and yielding a 35% increase in casting range.
• Hydrodynamic Balance (+50% Swimming Stability): Upon water entry, the forward-shifting ballast stabilizes the streamlined body, allowing it to maintain a tight wobbling/rolling action even against fast side currents.
• Neutral Horizontal Suspend: Calibrated to 18.5g, the internal air volume and weight placement allow the lure to suspend flat in the water column when paused—the primary trigger for pressured predators like bass, sea bass, and pike.
• Acoustic Attraction: Moving steel/tungsten spheres double as internal rattles, generating dual-frequency acoustic sound waves to draw strikes in low-visibility water.

Overcoming Hydrodynamic Failure Points in Mass Production

Many custom hard lures fail on the water due to subtle manufacturing oversights. Here is how our engineering protocols prevent them:

1. Preventing "Blowouts" at High Retrieval Speeds
   When a minnow is burned rapidly, uneven water pressure on the lip can force the body to tilt and blowout. We calibrate lip angle, tow-eye alignment, and keel ballast using hydrodynamic lure design simulation to ensure strict tracking stability at any retrieve speed.
2. Eliminating Ball Jamming Inside Internal Rails
   Rough injection seams inside the internal weight track can cause balls to stick at the tail, ruining the lure's swimming posture. We utilize mirror-polished CNC mold tooling for internal channels, ensuring frictionless, instant ball return on every cast.
3. Precision Buoyancy Tolerance Control
   For suspending baits, a variation of just 0.3g can turn a suspending lure into a fast-sinking defect. We maintain strict injection resin density standards and weight batch sorting to guarantee true suspension out of the box.

Weight System Engineering Comparison
